Facility Feature
Valley Feed & Seed Inc. Add Storage to Bring All Its Grain Onsite

New storage reduces need for ground piles

ROCK VALLEY, Iowa - In 2017, Valley Feed & Seed Inc., a single-location feed milling operation at the east end of Rock Valley, IA, rented 30,000 bushels of storage off-site to be able to store all of the corn the company wanted to have on hand.

“The year before, we stored 30,000 bushels of corn on the ground,” says Dave De Ruyter, company vice president and feed mill manager at the 800-tpw mill primarily producing swine and cattle feeds.

That experience was a major factor in the company’s decision in 2017 to build a 194,000-bushel Sioux Steel corrugated steel storage tank bringing total storage capacity at the facility to 660,000 bushels.

“We had been taking in all customer-owned corn,” De Ruyter says. “The extra storage lets us bring in some of our own corn in the fall.”

Valley Feed & Seed took bids and awarded a contract to Dacotah Grain Systems, then located in Hull, IA (712-348-2888), a Sioux Steel dealer, to serve as general contractor and millwright. (Dacotah Grain Systems since then has moved to Colorado but remains in the grain facility construction business.)

Work on the approximately $500,000 project began in April 2017, and the tank was completed in July.

New steel tank adds storage

Space on the Valley Feed & Seed property is at a premium, so the company opted for a taller tank rather than a wider diameter.

The new tank stands 54 feet in diameter, 92 feet tall at the eave, and 108 feet tall at the peak.

The tank comes equipped with outside stiffeners, flat floor, zero-entry Daay bin paddle sweep (manufactured by Sioux Steel), and an eight-cable TSGC grain temperature monitoring system.

A pair of 50-hp Sioux Steel centrifugal fans deliver 1/7 cfm per bushel of aeration through in-floor vents in a double-F pattern with the assistance of four roof exhausters.

A 5,000-bph overhead E-Z-Flo drag conveyor carries corn out to the new tank from existing grain-handling equipment.

The tank empties onto another 5,000-bph E-Z-Flo conveyor in an above-ground 7-foot-x-7-foot tunnel, which runs back to the existing leg. The tank has no sidedraws.

Company Profile, Valley Feed & Seed Inc.

  • Rock Valley, IA • 712-476-2723
  • Founded: 1972
  • Grain storage capacity: 660,000 bushels at one location
  • Feed milling capacity: 800 tpw
  • Products: Full line of swine and cattle feeds
  • Annual sales: $11 million
  • Number of employees: 7

Key personnel:

  • Bruce Kooima, co-owner
  • Dave De Ruyter, co-owner, feed mill manager
  • Chad Kooima, co-owner
  • Leon Van Beek, co-owner

Suppliers for the project

  • Aeration fans • Sioux Steel Co.
  • Bin sweeps • Sioux Steel Co.
  • Catwalk • E-Z-Flo Grain Handling Systems
  • Contractor • Dacotah Grain Systems
  • Conveyors (drag) • E-Z-Flo Grain Handling Systems
  • Grain temperature system • Tri-States Grain Conditioning Inc.
  • Millwright • Dacotah Grain Systems
  • Motors • North American Motors Inc.
  • Speed reducers • Dodge
  • Steel storage • Sioux Steel Co.
  • Steel tank erection • Dacotah Grain Systems

Reprinted from Grain Journal March/April 2018 Issue

Valley Feed & Seed Gallery

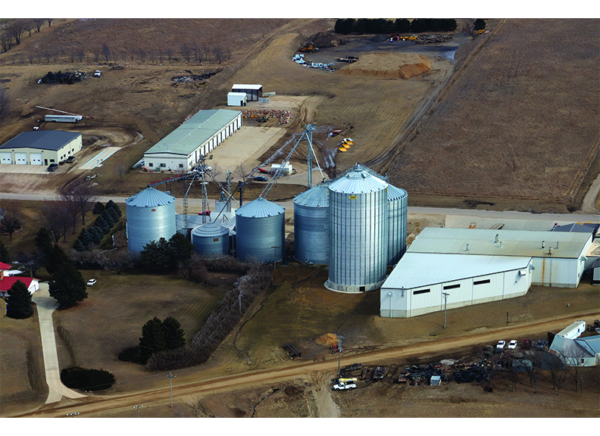

  • Valley Feed and Seed Aerial View

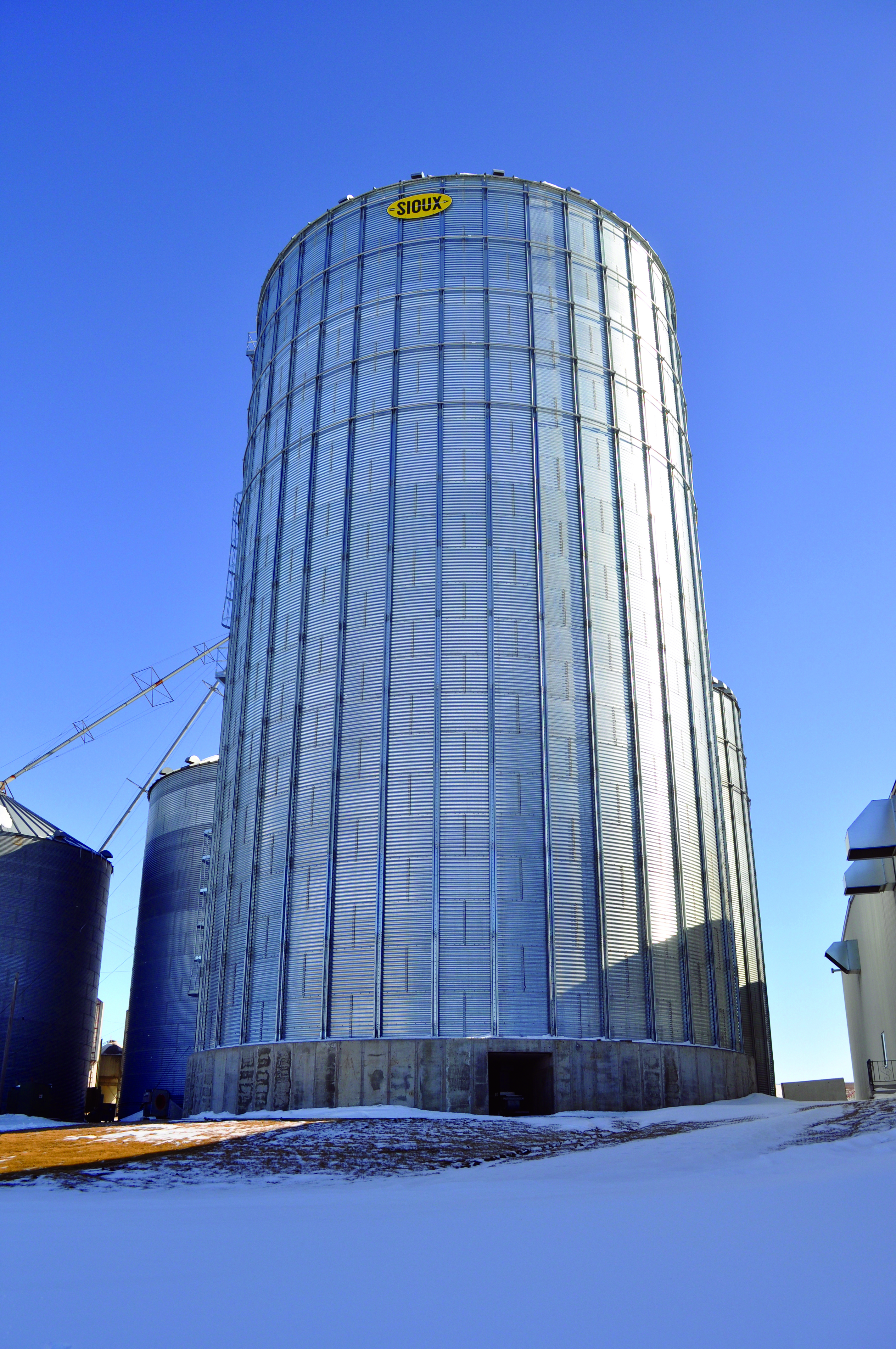

  • Corrugated Steel Tank
  • Co-Owner/Feed Mill Manager Dave De Ruyter
