Facility Feature
Scott Coop Association Adds Elevator in West End of Scott’s Territory

Coop works with Scoular in adding more storage

Scott Coop Association in Scott City, KS and Scoular Company in Omaha, NE have been cooperating out on the western Kansas prairies since 2014.

That’s the year that Scoular, the large regional grain handler, went in on constructing a bunker and temporary ground pile along State Highway 96 at Selkirk, KS (620-872-5823). The alternative was to upgrade an elevator at Marienthal, KS, about 20 miles away, where many Selkirk-area producers were hauling grain.

“Once we had proof of bushels and customer base at Selkirk, we decided we needed to build the elevator there in 2017 for efficiency and grain quality reasons,” says Scott Coop CEO Jason Baker.

Scoular has been working in a 50-50 partnership with Scott Coop at Selkirk, with the local Kansas cooperative providing day-to-day management of local facilities and Scoular handling merchandising and logistics. “They have the markets, and we have the origination capability and the relationship with the farmers,” says Baker, who has been with the cooperative for six years, 2-1/2 as CEO. (He came to Scott Coop from Western State Bank in Garden City, KS, where he served as assistant vice president and internal auditor with a variety of ag-related customers.)

Coop adds 1.1 million bushels of storage

The two companies broke ground in the fall of 2017 on a jumpform concrete elevator with 1.1 million bushels of upright storage about a mile east of Selkirk on State Highway 96. The $5.3 million elevator has been receiving grain since June 2018.

Building the elevator was M&N Millwright LLC, Kearney, NE (308-236-0555), as general contractor and millwright. M&N, which has had a long relationship with Scoular, was selected following a bid process. “It was our first project with them, and they did a c great job for us,” says Baker.

Other contractors on the project:

  • McPherson Concrete Storage Systems, McPherson, KS (620-241-4362), constructed the upright concrete storage.
  • Olsson Associates, Omaha, NE (402-341-1116), performed engineering work on the new elevator.
  • Watson Electric Inc., Salina, KS (785-827-2924), served as electrical contractor and supplied the Square D automation system.
  • JKL Construction, Plains, KS (620-563-9382), constructed foundations and flatwork.

Elevator includes three McPherson tanks

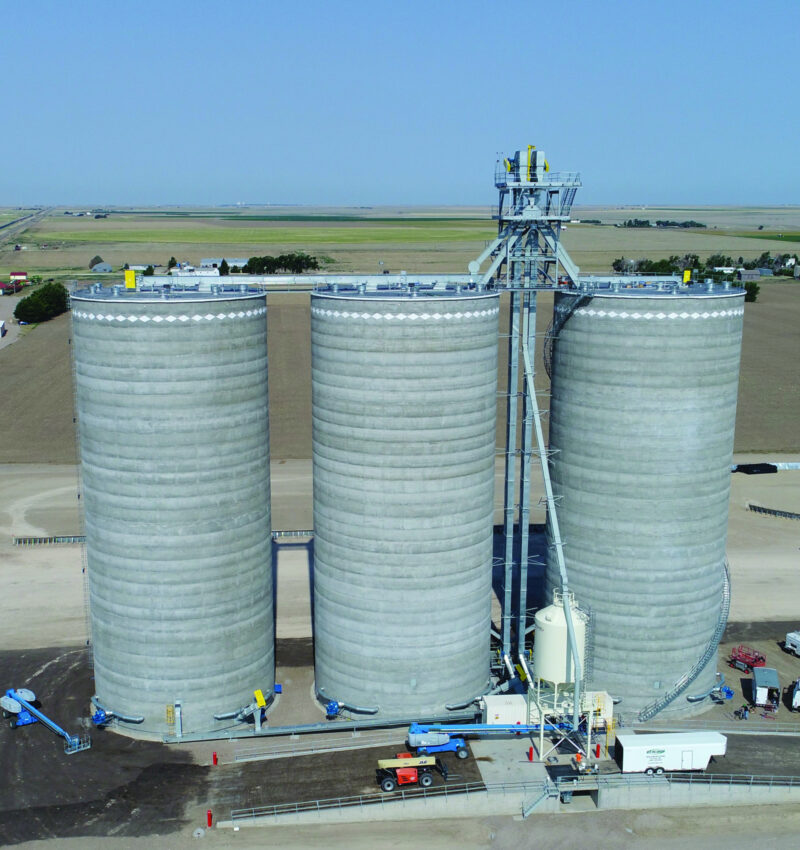

Storage at the Selkirk facility consists of three 350,000-bushel McPherson jumpform concrete tanks standing 60 feet in diameter and 140 feet tall. The tanks are equipped with 37-1/2-degree cone bottoms, a McPherson design popular on the High Plains where water tables are low. The cone bottoms provide additional bushel storage space.

The tanks are outfitted with 11-cable Rolfes@Boone grain temperature monitoring systems and high level mechanical switch-type level indicators from Garner Industries.

A set of four 40-hp Airlanco centrifugal fans per tank provide 1/9 cfm per bushel of aeration on coarse grains such as corn. For economical operation, the aeration is a downdraft type of system using non-powered vents on the roof.

Truckers bring grain to the elevator using an existing 80-foot inbound/outbound scale and truck probe adjacent to the single-story steel office building. The scale, installed in 2014, dates back to the temporary bunker days and is not yet automated.

At the elevator, truckers drive up a ramp to deposit grain into a pair of above-ground, 200-bushel mechanical receiving pits. These feed a pair of Warrior 15,000-bph receiving legs outfitted with a single row of Maxi-Lift Tiger-Tuff buckets mounted on a 20-inch All-State belt.

The legs deposit grain into a six-duct Schlagel double swingset distributor. This sends grain to the two tanks adjacent to the legs via gravity spouts. To top off the tanks, the distributor also can send grain out via a Warrior 30,000-bph overhead drag conveyor or via a Warrior 15,000-bph drag to the single tank to the north.

Each McPherson tank is equipped with a sidedraw spout for loading trucks and a M&N unloading auger for cleanout. The augers deposit grain onto 10,000-bph Warrior reclaim conveyors running back to the receiving pits.

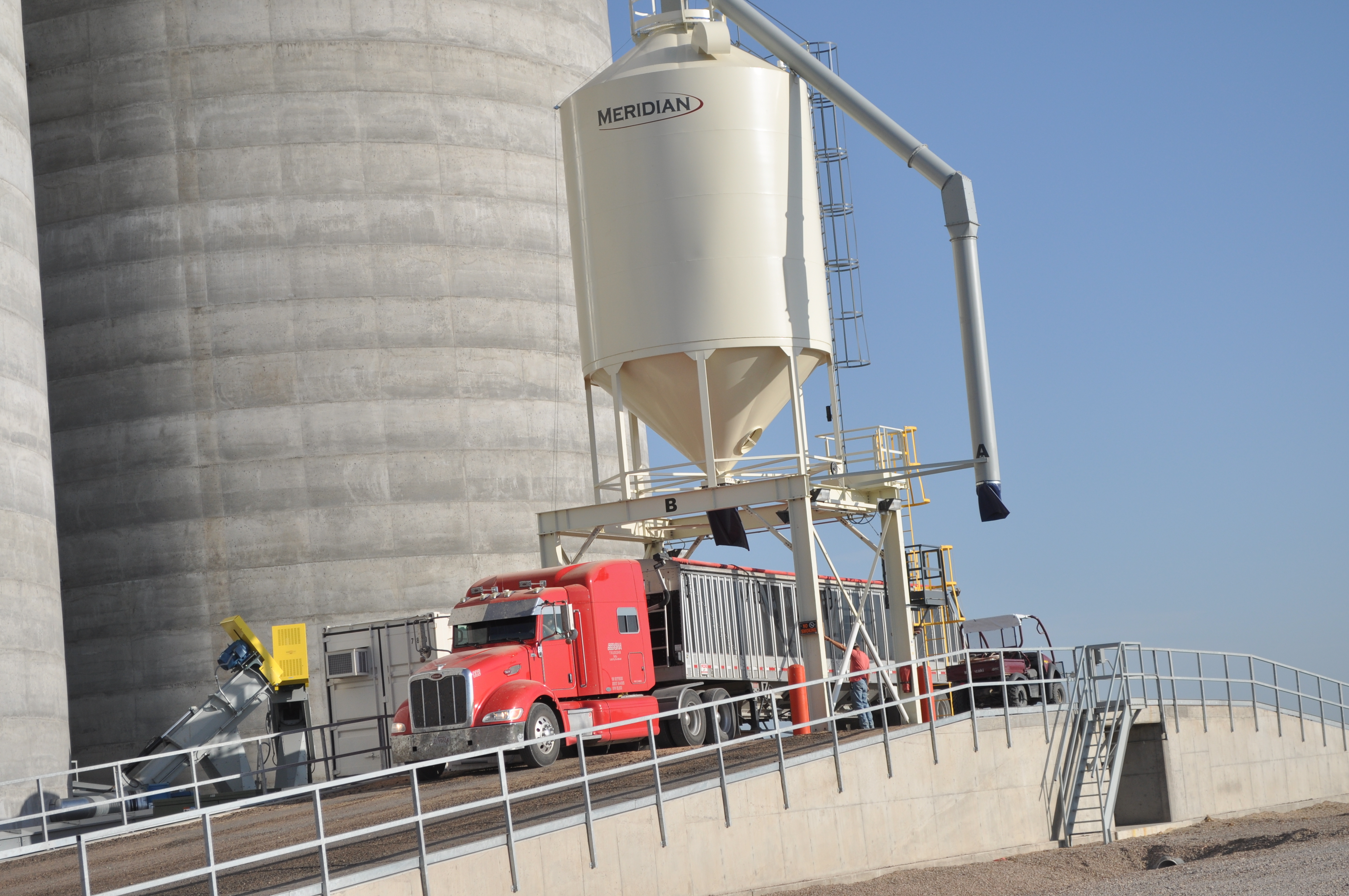

Truck loading also is accomplished via a 3,600-bushel Meridian surge tank mounted directly over the receiving pits. This tank is filled from the distributor via gravity spout.

“The elevator has performed beautifully,” says Baker. “We’re very impressed with it.”

Company Profile: Scott Coop Association

  • Scott City, KS • 620-872-5823
  • Founded: 1957
  • Storage capacity: 11 million bushels at eight locations
  • Annual volume: 14-20 million bushels
  • Annual revenues: $100 million
  • Number of members: 2,500
  • Number of employees: 48
  • Crops handled: Hard red and hard white winter wheat, corn, sorghum, soybeans, sunflowers
  • Services: Grain handling and merchandising, agronomy, custom application, bulk fuels, service stations

Key personnel:

  • Jason Baker, CEO
  • Rich McEachern, location manager
  • Lance Rapler, operations

Suppliers

  • Aeration fans • Airlanco
  • Bearing sensors • Maxi-Tronic Inc.
  • Bucket elevators • Warrior Mfg. LLC
  • Catwalks Warrior Mfg. LLC
  • Concrete silos • McPherson Concrete Storage Systems
  • Contractor • M&N Millwright
  • Control systems • Square D
  • Conveyors • Warrior Mfg. LLC
  • Distributor • Schlagel Inc.
  • Electrical contractor • Watson Electric
  • Elevator buckets • Maxi-Lift Inc.
  • Engineering • Olsson Associates
  • Foundations • JKL Construction
  • Grain temperature system Rolfes@Boone
  • Leg belting • All-State Belting LLC
  • Level indicators • BinMaster Level Controls
  • Millwright • M&N Millwright
  • Motion sensors • Maxi-Tronic Inc.
  • Motors • WEG
  • Speed reducers • Dodge
  • Spouting Premier • Components Inc.
  • Steel storage Meridian Mfg.
  • Valves • Nolin Milling Inc.

Reprinted from Grain Journal September/October 2018 Issue
