Facility Feature
MPS Feeds Builds New Feed Mill, Grain Elevator

MPS acts as its own contractor on new project

St. Henry, OH — West Central Ohio is a hotbed for livestock production in the state, especially for dairy, hogs, and poultry. So it made sense in 2017 when Mercer Landmark Inc., a farmer-owned cooperative in Celina, OH (419-586-2303), and Prairie Star Farms LLC, an egg producer based in New Weston, OH (419-336-5555), joined forces that year to form MPS Feeds LLC.

The MPS operation built a new $30 million, 1.5-million-bushel grain elevator and 900,000-tpy feed mill about a mile north of St. Henry, OH (419-763-5960), that began production in March 2020.

“For now, we’re strictly producing layer feeds,” says MPS Feeds General Manager David Vandiver. “We don’t expect to produce feed for other species immediately, but we may start hog feed production if business conditions allow in the future.” Vandiver has been with MPS for about a year; previously, he worked at a Cargill facility in Gettysburg, PA.

MPS acted as its own contractor on the project. After reviewing bid proposals, the company awarded a contract to Manufacturing Solutions, Inc., Humboldt, IA (515-368-3991), to serve as project manager and engineer. Other major subcontractors:

  • Millniphec, LLC, Troy, OH (937-947-1417), served as millwright.
  • Mercer County Electric, Inc., Fort Recovery, OH (419-375-2514), was the electrical contractor.
  • American Boiler & Mechanical, St. Louis, MO (314-865-3000), was the mechanical contractor in the mill.

Construction began in the spring of 2018.

Grain Elevator has 1,545,000 bushel storage capacity

The all-steel grain elevator includes five GSI corrugated steel tanks, two rated at 570,000 bushels and three at 135,000 bushels, all dedicated to corn.

The large tanks stand 90 feet in diameter and 99 feet tall at the eaves, while the small tanks are 48 feet in diameter and 85 feet tall at the eaves. All are equipped with outside stiffeners and GSI X-Series zero entry sweep augers.

None of the tanks have grain temperature monitoring,, since the corn is turned over quickly for the mill. The tanks are aerated at 1/10 cfm per bushel using four GSI 40-hp centrifugal fans on the 90-foot tanks and 15-hp fans on the 48-foot tanks.

Storage also includes a pair of 450-ton bolted steel tanks with Laidig unloaders, one for soybean meal and the other for distillers dried grains. These are served by two separate ingredient pits and 5,000-bph GSI legs

Incoming grain from area farmers or other Mercer Landmark elevators arrives by truck. Vehicles are routed through the property using a CompuWeigh Smart Truck system. This includes a SmartTouch terminal near the Gamet JaHam probe, where drivers can check themselves in and SmartChoice software assigns trucks to specific receiving pits according to commodity and grade factors. The checkin and checkout process also includes a pair of 70-foot Brechbuhler inbound and outbound pit-type truck scales.

Grain trucks are sent to one of two receiving pits. These feed two Hayes & Stolz 10,000-bph legs equipped with 14x8 Maxi-Lift Tiger-Tuff buckets mounted on a 15-inch belt.

The legs deliver grain to a four-duct Hayes & Stolz distributor, which in turn sends grain out to storage via a pair of 20,000-bph AGI Hi Roller enclosed belt conveyors designed with intermediate discharges to fill the steel tanks.

Tanks empty onto above-ground Essmueller 5,000-bph drag conveyors running to a 5,000-bph GSI jump leg. At the top, an overhead AGI Hi Roller 5,000-bph enclosed belt conveyor sends grain to grinding in the feed mill.

Feed Mill ships at least 90 loads a day

The all-steel mill structure includes 32 Tom-Cin ingredient bins holding an average total of 3,000 tons and 40 loadout bins holding approximately 1,500 tons. All mill operations are under the control of a WEM Automation system.

Corn comes over from storage on a 5,000-bph AGI Hi Roller enclosed belt conveyor and is ground on a set of four RMS Roller-Grinder roller mills, two double-roll and two triple-roll c models for a total capacity of 152 tph.

Ingredients are weighed in a pair of Tom-Cin-fabricated batching scales, then are sent to an 8-ton Scott twin shaft mixer. The average mix time is three minutes for a total capacity of 160 tph.

In addition to the square bins, ingredients are added to the mixer from a 24-bin Abel microingredient system, a six-tote system fabricated by Manufacturing Solutions, and seven liquid tanks, also from Manufacturing Solutions.

From the mixer, bulk feed proceeds directly to the loadout bins. No pelleting is done at St. Henry, though there is space for a pair of pelleting lines later.

MPS currently ships up to 90 loads a day on its own truck fleet within about a 60-mile radius.

MPS Feeds

  • St. Henry, OH • 419-763-5960
  • Founded: 2017
  • Feed milling capacity: 900,000 tpy at three locations
  • Grain storage: 1.5 million bushels at one location
  • Number of mill employees: 27
  • Feed products: Layer feeds

Key personnel

  • David Vandiver, general manager
  • Dennis Schwieterman, operations manager
  • Kaleb Hemmelgarn, transportation/maintenance manager

Suppliers for the project

  • Actuators Andco Inc.
  • Aeration fans GSI
  • Air compressor Gardner Denver
  • Automation WEM Automation Bearing sensors Rolfes@Boone
  • Bin sweeps GSI
  • Boiler Cleaver Brooks
  • Bridge LeMar Industries
  • Bucket elevators Hayes & Stolz Ind. Mfg. Co. Inc.
  • Cleaner CPM/Roskamp
  • Contractor Manufacturing Solutions, Inc.
  • Conveyors (belt) AGI Hi Roller Conveyors
  • Conveyors (drag) The Essmueller Co.
  • Conveyors (screw) Screw Conveyor Corp.
  • Distributors Hayes & Stolz Ind. Mfg. Co. Inc.
  • Diverter valves Hayes & Stolz Ind. Mfg. Co. Inc.
  • Dust collection Schenck Process, LLC
  • Electrical contractor Mercer County Electric, Inc.
  • Elevator buckets Maxi-Lift Inc.
  • Gates Tom Cin Metals, Vortex
  • Hammermill Bliss Industries, LLC
  • Level indicators Monitor Technologies, LLC
  • Liquid meters Krohne
  • Liquid pumps Viking
  • Liquid tanks Manufacturing Solutions Inc.
  • Magnets Bunting Magnetics Co.
  • Manlift Sidney Mfg. Co.
  • Microingredient system Abel Mfg. LLC
  • Millwright Millniphec, LLC
  • Mixer Scott Equipment Co.
  • Motion sensors 4B Components Ltd.
  • Roller mills RMS Roller-Grinder Inc.
  • Scales Tom-Cin Metals
  • Scalper Baasch & Sons, Inc.
  • Speed reducers Dodge
  • Square bins Tom-Cin Metals
  • Steel storage GSI
  • Tote bag system Manufacturing Solutions Inc.
  • Tower support system LeMar Industries
  • Truck scale Brechbuhler Scales, Inc.
  • Truck scale automation CompuWeigh Inc.
  • Unloading system Laidig Systems, Inc.
  • Vibrators VIBCO, Inc.
  • Warehouse Kirby Building Systems

- Ed Zdrojewski, editor
Reprinted from July/August 2020 Grain Journal

MPS Feeds Gallery

MPS Acts as Own Contractor For New Feed Mill, Grain Elevator

  • Control Room WEM Automation System
  • Scott Twin Shaft Mixer

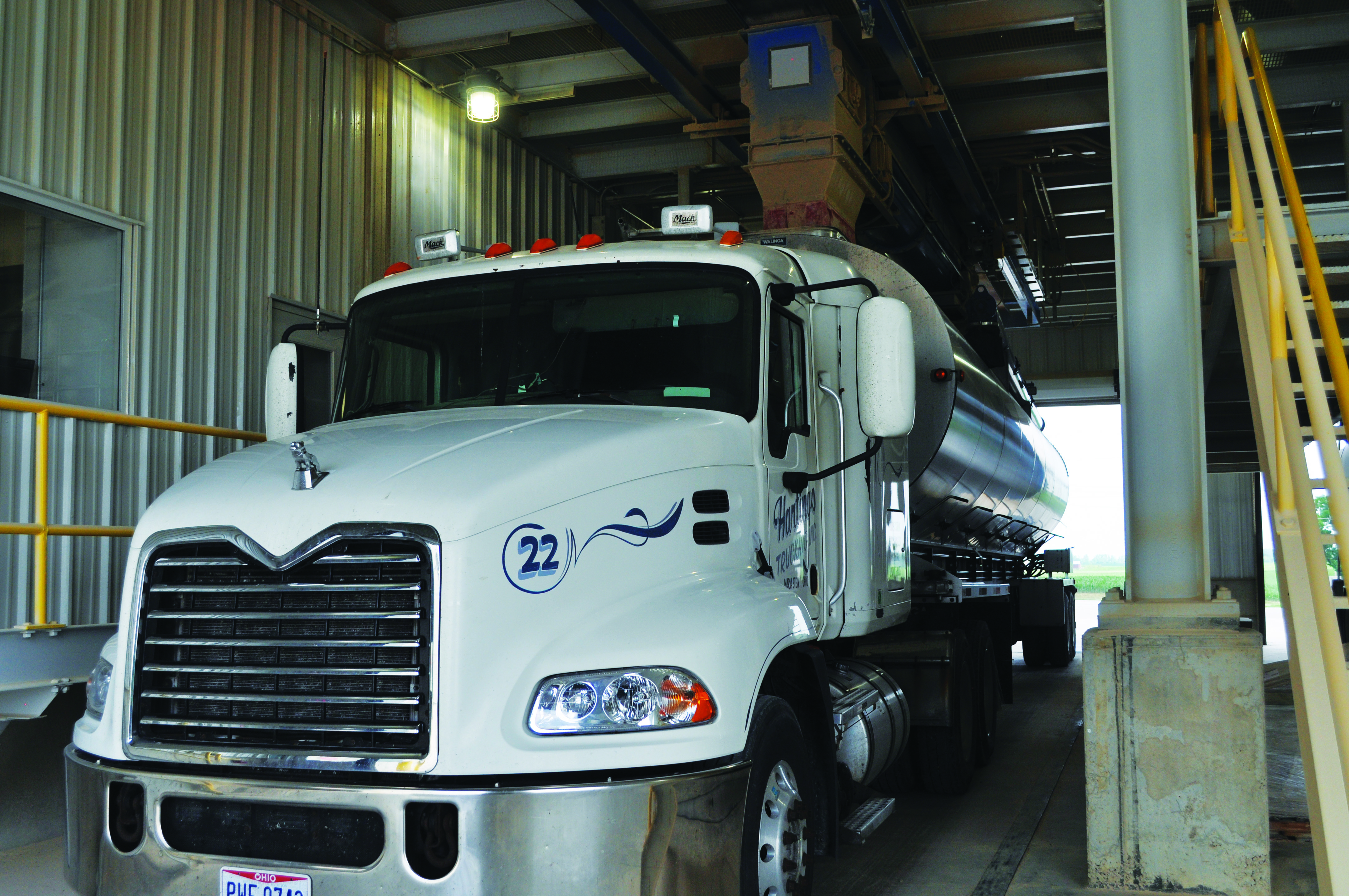

  • Feed Truck in Loadout Bay
  • MPS Feeds General Manager David Vandiver

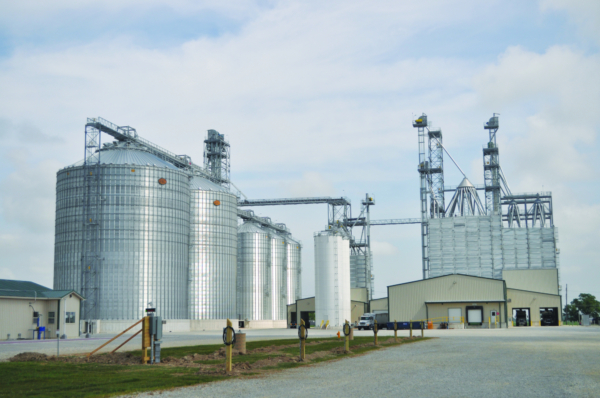

  • MPS Grain Elevator and Feed Mill
