Mid Kansas Cooperative Squeezes in Three More Concrete Grain Storage Tanks

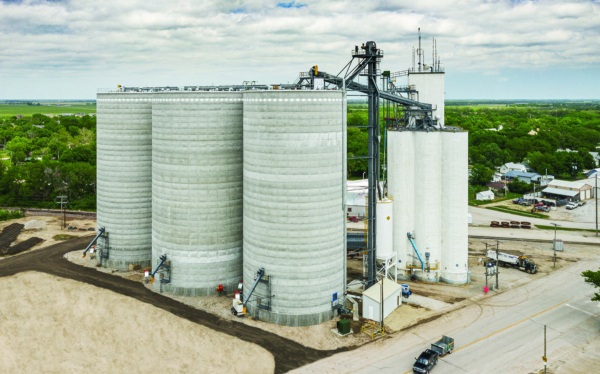

Coop adds 1.25 million bushels of jumpform storage, receiving facility at its Moundridge, KS grain elevator location

The 2.5-million-bushel grain elevator operated by Mid Kansas Cooperative (MKC) in Moundridge, KS stretches several blocks through the heart of the town of 1,737.

The headquarters elevator for the more than 3,000-member coop extends across both sides of Cole Street, the main east-west artery through town.

So finding space to add another 1.25 million bushels of storage in 2019-20 took some consideration and planning, says Senior Location Manager Adam Butler, who came to MKC in 2015 after working at several Kansas locations for Cargill.

Going with jumpform concrete tanks offered the advantage of being able to build taller on a smaller footprint, as well as the usual arguments for concrete, such as longevity. “We also had a surprisingly competitive bid,” Butler says without elaborating on the amount.

Even so, he adds, building three new tanks on the north side of Cole Street adjacent to an existing slipform concrete workhouse required the demolition of several older steel tanks and an old shop building.

Frisbie Construction longtime partner with MKC

The winning bid on the project went to Frisbie Construction Co. Inc., Gypsum, KS (785-536-4288), a contractor that has worked extensively with MKC on numerous projects. The three new tanks were built by McPherson Concrete Storage Systems, McPherson, KS (620-241-4362).

In addition, Kansas Electric Inc., Newton, KS (316-283-4750), served as the electrical contractor on the project.

Kasa Controls & Automation, Salina, KS (785-825-7181), supplied a complete automation system for the project. which interfaces with a Electro-Sensors hazard monitoring system to sound an alarm or even shut down the elevator in the event of an operational problem that requires it.

Construction broke ground in September 2019. Final touches on electrical systems were expected to be completed at the beginning of June 2020, when Grain Journal visited the site in mid-May.

Of the three tanks, explains Director of Facilities Jon Brown, the center tank, at 490,000 bushels, is larger than the two outer tanks, at 365,000 bushels capacity. Again, that was done to maximize storage capacity in a limited space, says Brown, a 10-year MKC veteran who is in charge of the cooperative’s construction projects.

The center tank stands 72 feet in diameter, while the other two are 64 feet in diameter. All three are 128 feet tall.

The flat-bottom tanks are outfiitted with Prairie Land Bin Gator paddle-type bin sweeps and eight-cable Rolfes@Boone grain temperature monitoring systems. Each tank is equipped with four Tiernan 50-hp centrifugal fans capable of delivering 1/6 cfm per bushel on coarse grains through in-floor ducting.

Mechanical receiving pit feeds 20,000 bph leg

In between the jumpform tanks and the slipform workhouse, Frisbie installed a 1,200-bushel mechanical receiving pit. This feeds a new 20,000-bph Bulk Conveyors (BCI) leg equipped with Maxi-Lift Tiger-Tuff CC 20x10 buckets mounted on a 23-inch LEGG rubber belt.

The leg deposits grain into a five-duct Schlagel electronic rotary distributor. This, in turn, delivers grain via gravity spout to 20,000-bph BCI overhead drag conveyors running out to new storage or onto a 20,000-bph reversing drag conveyor that connects with the workhouse. One spout drops grain into a 5,000-bph FCS surge tank for loading trucks.

Also for truck loading, the new tanks are equipped with sidedraw spouts. For cleanout, they empty into a 10,000-bph BCI drag conveyor in a 5-foot-tall above-ground tunnel. The Kasa automation system allows sumps to open by set percentages for blending on the go, when appropriate.

In addition to the elevator expansion, work in Moundridge included construction of a new 6,000-square-foot cooperative-wide training center, which is expected to open later in 2020.

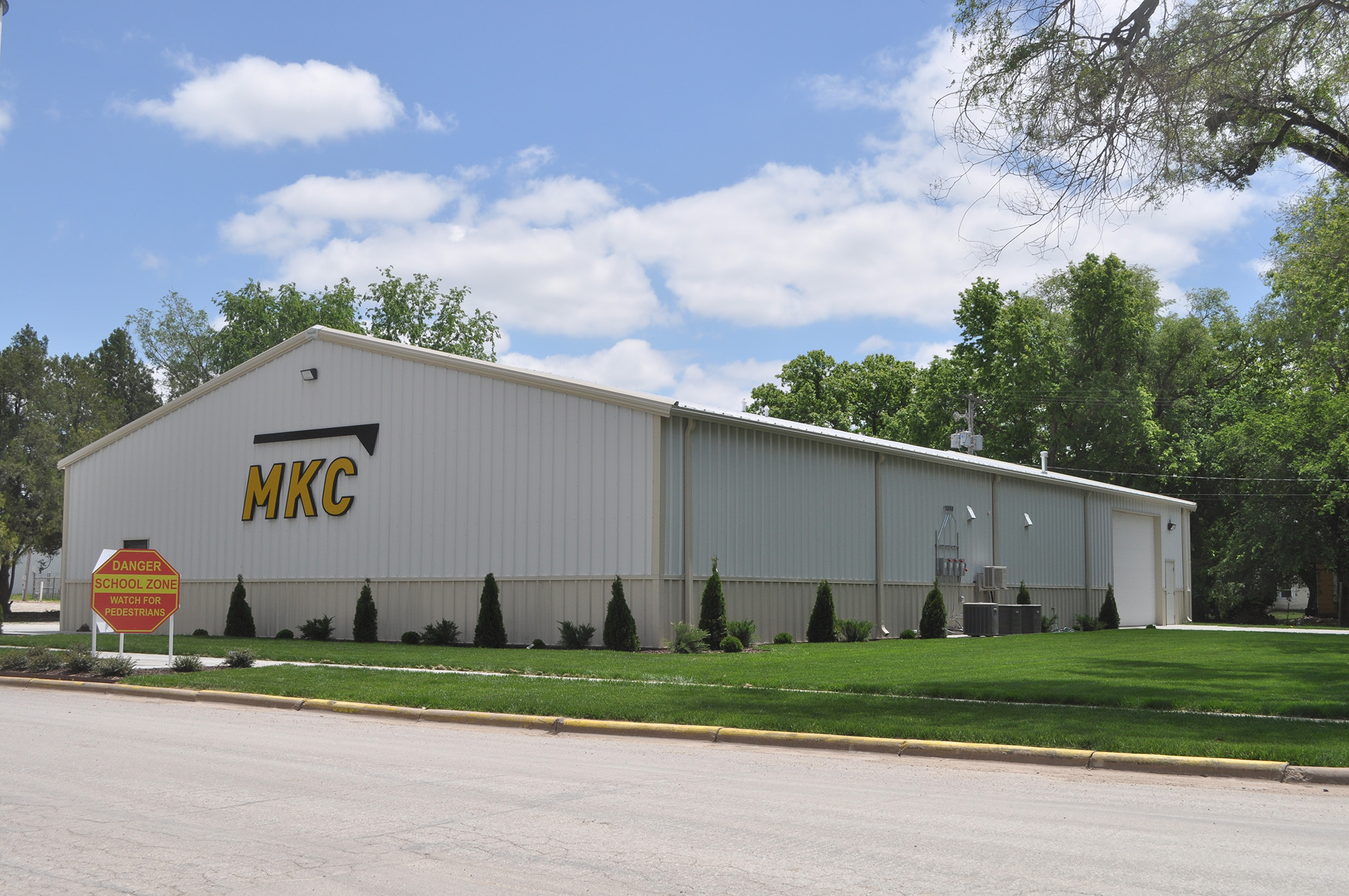

The single-story steel building, located about a block south of the new elevator construction, has been completed.

It houses classroom and conference room space and will include a miniature working grain elevator for demonstrations and hands-on training. Already installed in the building is a miniature working manlift and a full-size anhydrous tank. All working equipment is being donated by manufacturers.

Look for a longer article about the MKC training center in an upcoming issue of Grain Journal.

New MKC training center for training both new and established employees cooperative-wide will contain a fully working miniature grain elevator.

Mid Kansas Cooperative

  • Moundridge, KS • 620-837-3313
  • Founded in 1965
  • Storage capacity: 60 million+ bushels at 26 locations
  • Annual volume: 60 million bushels
  • Annual revenues: $500 million
  • Number of members: 8,000+
  • Number of employees: 300
  • Crops handled: Corn, soybeans, hard red winter wheat, sorghum
  • Services: Grain handling and merchandising, feed, agronomy, fuels

Key personnel at Moundridge

  • Jon Brown, director of facilities
  • Adam Butler, senior location manager
  • Brad Wedel, location manager

Project Suppliers

  • Aeration fans • Tiernan Aeration
  • Automation system • Kasa Controls & Automation
  • Bin sweeps • Prairie Land Millwright
  • Bucket elevator • Bulk Conveyors Inc. (BCI)
  • Catwalks  Frisbie Construction Co. Inc.
  • Concrete tanks • McPherson Concrete Storage Systems
  • Contractor/millwright • Frisbie Construction Co. Inc.
  • Conveyors • BCI
  • Distributors • Schlagel Inc.
  • Drives • Dodge
  • Electrical contractor • Kansas Electric
  • Elevator buckets • Maxi-Lift Inc.
  • Engineering • Frisbie Construction Co. Inc.
  • Grain temp system • Rolfes@Boone
  • Hazard monitoring system • Electro-Sensors, Inc.
  • Leg belting • LEGG Company, Inc.
  • Motors • Siemens
  • Speed reducers • NORD Drivesystems
  • Surge tank • FCS
  • Tower support system • Frisbie Construction Co. Inc.

Ed Zdrojewski, editor

Reprinted from May/June 2020 Grain Journal

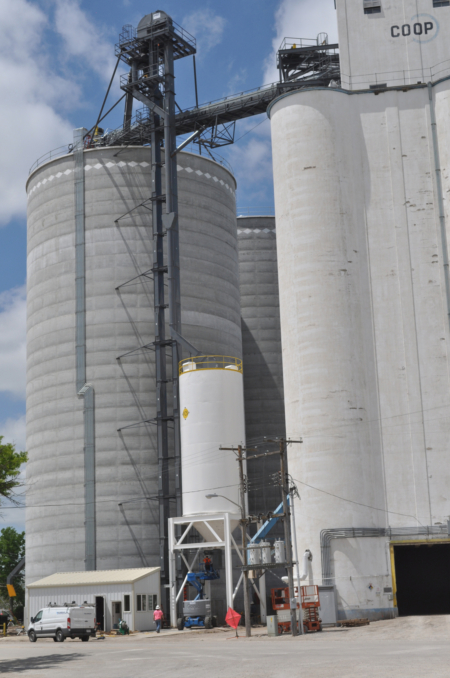

New grain handling equipment includes a 20,000-bph BCI leg, five-duct Schlagel distributor on top, and a 5,000-bushel FCS surge tank. Photos on this page by Ed Zdrojewski.
