Facility Feature
Farmers Cooperative Association Increases Steel Storage for Ninth Consecutive Year

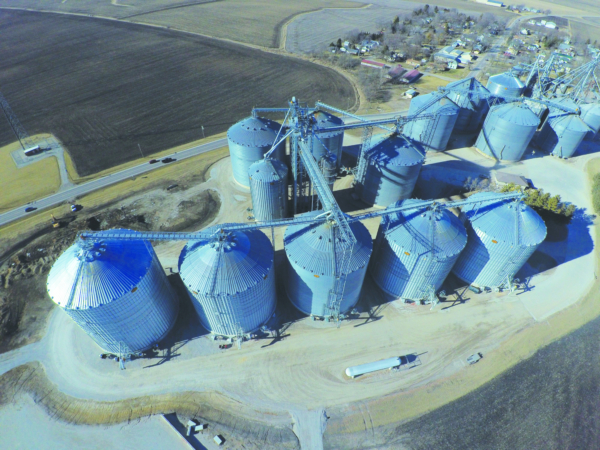

Farmers Cooperative’s latest expansion, in late summer 2016, consisted of building a GSI 788,000-bushel corrugated steel tank, far left.

Coop continues to expand with advancing corn, soybean yields in Illinois

Varna, IL — As corn and soybean yields continue to grow, so will Farmers Cooperative Association in Varna, IL.

That’s the philosophy General Manager Jay Junker shared during Grain Journal’s visit in early March, and it explains why the coop has added steel storage for nine consecutive summers. (Grain Journal featured two past projects at the coop in the January/February 2011 issue and January/February 2007 issue.)

“As long as we remain profitable, we’re going to continue adding storage, because we know yields aren’t going down, and weather is having less of an impact,” says Junker, who has managed the northwest-Illinois coop for 27 years.

GM Junker favors steel storage for grain quality

Junker mentions that he prefers steel storage to temporary storage, because “I’m a stickler for grain quality, and we just don’t have the manpower to maintain a pile like I would want to.

“If we have the money, we’re always going to choose steel storage – they’re fixed assets, and nowadays they last for 25 years,” he explains.

Farmers Cooperative’s latest expansion, in late summer 2016, consisted of building a GSI 788,000-bushel corrugated steel tank.

The $1.6 million contract was awarded to Grain Flo Inc., Heyworth, IL (800-842-4875), which has served as general contractor on every major project at the coop since Junker became general manager in 1989.

“They do great work, of course, but they also are always available for emergencies or repairs. I know I can call them at 2 a.m. during harvest and have someone out to help us.”

Also hired for the project was SKS Engineers LLC, Decatur, IL (217-877-2100), which provided structural design for the foundation, which was built by M.B.I. Construction, Effingham, IL (217-868-2824); KDJ Sales & Service, Mackinaw, IL (309-359-3611), which did the electrical work; and Wieber Steel Construction, Altamont, SD (605-874-8247), which erected the tank.

AgriDry grain spreader reduces FM concentration

The new flat-bottom, outside-stiffened tank measures 105 feet in diameter, 98 feet tall at the eaves, and 126 feet tall at the peak. It is equipped with four Chicago Blower 60-hp centrifugal fans, as well as thirteen 2-hp roof exhaust fans, providing 1/8 cfm per bushel of aeration through 8-inch-thick recessed trenches beneath the tank floor.

Also included in the new tank is a 12-inch Hutchinson/Mayrath zero-entry bin sweep, 13 Rolfes@Boone temperature monitoring cables, VEGA Americas level indicators, and an AgriDry 25,000-bph grain spreader (the facility’s third AgriDry spreader).

“The spreader has been nice,” says Junker. “Our FM concentration has definitely decreased in a big way.”

The new tank is filled by an overhead 25,000-bph GSI belt conveyor that runs from an existing GSI 25,000-bph receiving leg, and the tank empties into a GSI 15,000-bph drag conveyor in a 5-foot-x-5-foot above-ground tunnel.

“This turned out to be a very easy project, and we’re awfully happy that we decided to do it. M.B.I. laid the foundation in mid-August, and it was finished by October in time for harvest,” he says.

Junker mentions that during a visit in February Grain Flo plotted space for three additional tanks, and that he expects to build at least one this summer.

General Manager Jay Junker

Company Info, Farmers Cooperative Association

  • Varna, IL • 309-463-2061
  • Founded: 1930
  • Storage capacity: 10.7 million bushels at two locations
  • Annual volume: 13 million bushels
  • Number of members: 600
  • Number of employees: 4
  • Crops handled: Corn, soybeans
  • Services: Grain handling and merchandising

Key personnel:

  • Jay Junker, general manager
  • Tim Grebner, assistant manager
  • Christine Schumacher, office manager
  • Ross Schakow, operations manager

Supplier List

  • Aeration fans • Chicago Blower
  • Aeration system • Decatur Aeration
  • Bin sweeps • Hutchinson/Mayrath
  • Catwalk • Grain Flo Inc.
  • Concrete • M.B.I. Construction
  • Contractor • Grain Flo Inc.
  • Control system • KDJ Sales & Service Inc.
  • Conveyors • GSI
  • Electrical contractor • KDJ Sales & Service
  • Engineering • SKS Engineers LLC
  • Grain temp. cables • Rolfes@Boone
  • Grain temp. system • Safe-Grain Inc./Canary Systems
  • Level indicators • VEGA Americas
  • Liner • General Rubber/Tandem Products
  • Millwright • Grain Flo Inc.
  • Motion sensors • 4B Components Ltd.
  • Speed reducers • Dodge
  • Steel storage • GSI
  • Steel tank erection • Wieber Steel Erection
  • Tower support system • Grain Flo Inc.

- Tucker Scharfenberg, associate editor

Reprinted from GRAIN JOURNAL March/April 2017 Issue

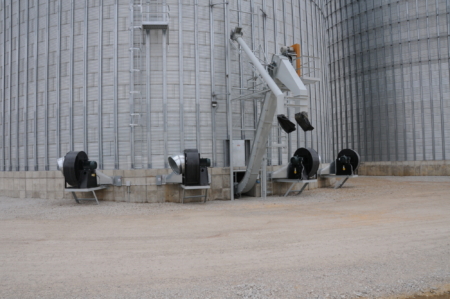

Farmers Cooperative’s new GSI 788,000-bushel steel tank is equipped with four Decatur Aeration 60-hp fans and a 15,000-bph GSI reclaim conveyor.
