Facility Feature
CP Feeds, LLC. Adds Second Mill to Consolidate Local Market

Dairy feed manufacturer builds new mill serviced by CN

WRIGHTSTOWN, Wis. - Valders, WI-based CP Feeds LLC had a choice to make over growing its dairy feed milling business. The privately-held company could try to expand its territory over a wider swath of northeast Wisconsin, or it could try to capture a bigger market share close to home.

After some study, the Purina dealer chose the latter course, says CP Feeds President and General Manager Jim Loefer. (Loefer has been with CP Feeds for 18 years and also farms cash crops in the Valders area.

“We were at capacity at our mill in Valders at 1,100 tpd,” says Loefer. “We were running 24 hours a day for 5-1/2 days a week. We had a hard time growing, and Purina Mills was doing toll milling for us at their mills in Little Chute (WI) and Fond du Lac (WI). We were also concerned about having everything in one location – a single disaster such as a tornado, and we’d be out of business.”

CP Feeds in 2017 hired LOL’s strategic planning group surveying the feed market. Through that study, the company determined that expanding to the west would be challenging due to five new feed mills that had gone into production in that direction.

Alternatively, the study revealed an opportunity to expand CP Feeds’ customer base within 30 miles by adding a second feed mill closer to home. CP Feeds decided to build its second mill on a site north of Wrightstown, WI (800-277-4465), adjacent to a Country Visions fertilizer plant. The site is served by the Canadian National Railway (formerly Wisconsin Central).

To construct the new mill, with a projected capacity of 2,400 tpd, CP Feeds selected ASI Industrial, Billings, MT (406-245-6231), as design-build contractor. “We liked the layout and the option for concrete that they brought us in the bid,” says Loefer. “And the price was reasonable for a structure projected to last 100 years.”

Construction of the $20 million mill broke ground in the fall of 2016, and it began producing feed on Sept. 1, 2018. Unfavorable weather and challenging soil conditions lengthened the construction project. Ultimately, the mill’s slipform concrete structure required the installation of 300 auger-cast pilings 12 inches in diameter and 50 feet deep.

Efficient operation loads truck in 5-7 minutes

Manufacturing operations throughout the Wrightstown mill are under the control of a WEM4000 automation system.

According to Loefer, the mill is set up to receive whole grain, mostly grown locally, at 7,500 bph through two truck and one rail receiving pits. Trucks generally bring corn, while canola, bicarb, corn gluten feed, and flaxseed arrive by rail.

Whole grains plus gluten feed usually are sent to a row of eight Brock steel hopper tanks, four rated at 15,000 bushels and four at 16,000. Certain ingredients, primarily cottonseed, are delivered to a separate flat storage building.

Corn is ground at 36-tph on an RMS roller mill. A used hammermill from another location is available to grind lower-volume ingredients.

The main concrete structure of the mill includes 58 ingredient bins with a total capacity of 148,500 bushels and 34 loadout bins holding 55,770 bushels in total.

The WEM batching system delivers ingredients from those bins to a Scott 6-ton twin-ribbon mixer operating at 100 tph. The mixer also receives ingredients from a 12-tote storage system, and a 24-bin Tom-Cin gain-in-weight microingredient system, and a 6-bin Abel loss-in-weight system. It also receives fats and other liquid ingredients from nearby storage tanks.

Feed is not pelleted at Wrightstown, but there is space to add that capability as needed.

Feed trucks are loaded manually while parked on Rice Lake scales through a set of seven stationary spouts in an average of five to seven minutes per truck.

Company Profile: CP Feeds LLC

Valders, WI • 920-775-9600

Founded: 2000

Milling capacity: 3,500 tpd at two locations

Feed products: Full line of dairy feeds

Annual sales: $175 million

Number of employees: 60

Key personnel at Wrightstown:

  • Jim Loefer, president/general manager
  • Keary Gettler, operations manager
  • Joe Kuhn, plant manager
  • Larry Dvorchek, purchaser/broker
  • Nancy Beckman, controller

Suppliers for the project

  • Automation system WEM Automation
  • Bearing sensors 4B Components Ltd.
  • Bin level monitors BinMaster Level Controls
  • Bucket elevators Schlagel Inc.
  • Contractor ASI Industrial
  • Conveyors (drag) Schlagel Inc.
  • Conveyors (screw) ASI Industrial
  • Distributor Schlagel Inc.
  • Dust collection system Donaldson Torit
  • Elevator buckets Maxi-Lift Inc.
  • Engineering ASI Industrial
  • Gates/diverters ASI Industrial
  • Hammermill Buhler Inc.
  • Level indicators Siemens Industry
  • Liquid tanks ASI Industrial
  • Magnets Schlagel Inc.
  • Mass flow meters Endress Hauser
  • Microingredient system Abel Mfg. Co. Inc., Tom-Cin Metals Inc.
  • Mixer Scott Equipment Co.
  • Motion sensors 4B Components Ltd.
  • Plug sensors BinMaster Level Controls
  • Scales ASI Industrial
  • Speed reducers Dodge
  • Square bins ASI Industrial
  • Steel storage Brock Grain Systems
  • Truck scales • Rice Lake Weighing Systems

Reprinted from Grain Journal November/December 2018 Issue

CP Feeds, LLC Gallery

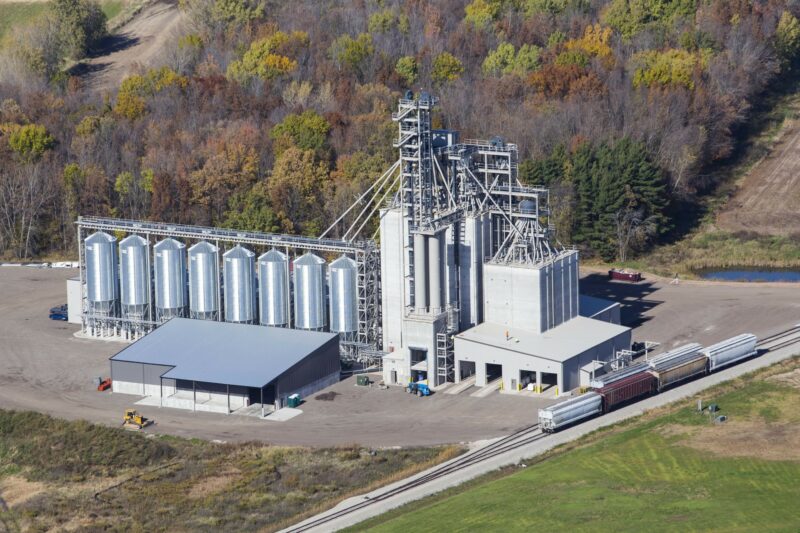

  • CP Feeds LLC Aerial Shot

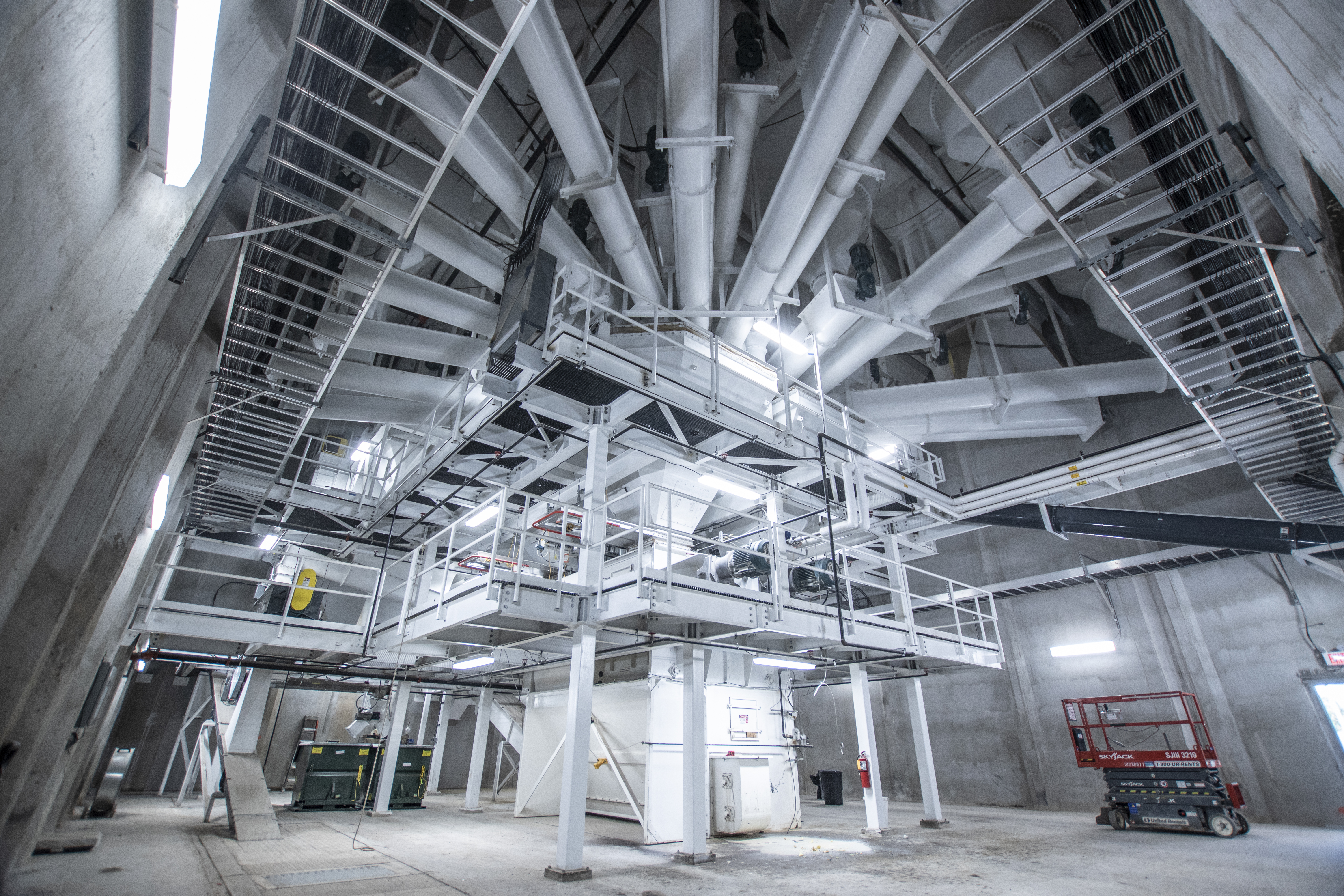

  • Batching Scale and Scott Mixer

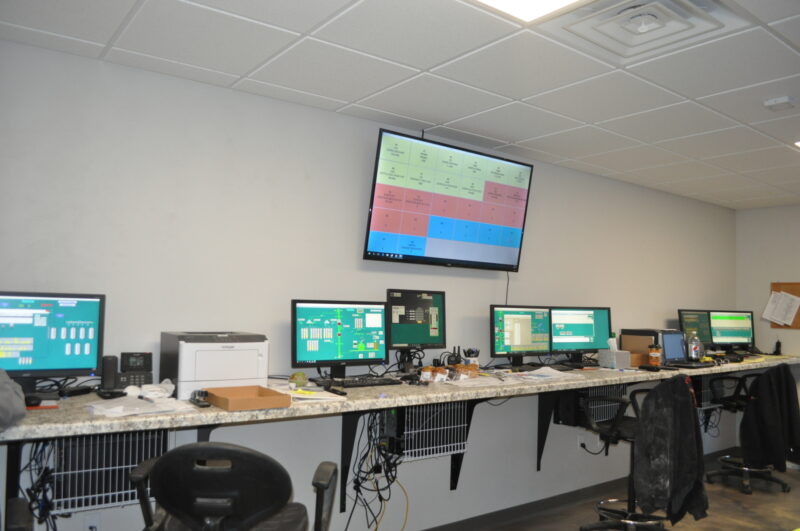

  • Feed Mill Control Room, WEM4000 Automation System
