Facility Feature
Butterball Builds Large-Scale Slipform Concrete Feed Mill in Northern Arkansas

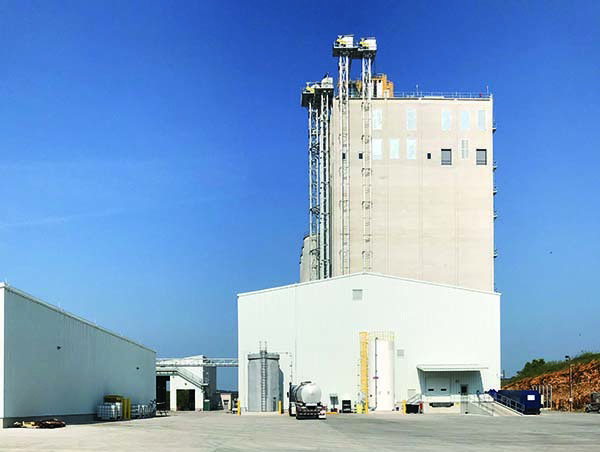

Ground-level view of Butterball, LLC’s new 12,000-tpw feed mill in Yellville, AR.

Turkey producer consolidates two mills at new site with rail access for receiving feed ingredients

Yellville, AR — Butterball, LLC, the iconic turkey producer, had been supplying feed to its growers in north central Arkansas from two older steel feed mills, one in Mountain Home built in 1966 and the other in Green Forest built in 1987.

The privately held company had another more up-to-date mill in Ozark, AR, “but that’s two hours away over the mountains. The freight cost would be prohibitive,” says Dr. Vernon Felts, senior director of live production.

Instead, Butterball decided to consolidate the two steel mills into a single large slipform concrete mill. The nearly $50 million mill produces up to 12,000 tpw of turkey feeds.

Siting the mill was a challenge, not the least of which was finding enough flat ground to build a feed mill in the Ozarks. Butterball was able to obtain a site in Yellville, AR, with utilities, good highway access, and access to the Missouri & Northern Arkansas Railroad, a short-line with connections to three Class I lines. Rail access is important, since few row crops are grown locally in the mountainous region, Felts says. Corn mostly is railed in from the Midwest.

Slipform concrete silo holds 600,000 bushels

The company hired WL Port-Land Systems Inc., Pittsburgh, PA (412-344-1408), as the design-build contractor. “We have a long history with them on projects large and small,” says Felts.

Repete Corp., Sussex, WI (262-246-4541), supplied its FLX automation system which is customizeable from receiving to loadout.

Groundbreaking occurred in December 2017 followed by six months of significant sitework. Structure crews mobilized in June 2018; the two slipforms were finished in the fall of 2018; and feed production started in March 2020.

Since virtually no ingredients are produced locally, the project includes a 600,000-bushel slipform concrete grain silo structure on-site. The whole grain structure consists of eight tanks standing 30 feet in diameter and 142 feet tall. They are equipped with 45-degree steel hoppers for easy, zero-entry unloading.

The mill receives at 32,000 bph through two receiving pits, one for truck and the other for both rail and truck. Butterball specifies that corn be cleaned at origin.

Corn is ground on a pair of Bliss 500-hp fine-grind hammermills at an average 65 tph before being elevated into ingredient bins.

The 191-foot-tall mill tower includes 29 ingredient bins holding an average 4,300 tons total. The slip also includes three mash feed bins holding 150 tons each and 24 finished feed bins holding an average total of 4,800 tons.

Three feed milling lines used at location

The plant includes three feed milling lines, one of which is segregated strictly for organic or certain specialized ingredients to prevent cross-contamination.

The two Scott six-ton double-ribbon mixers are rated to produce 12,000 tpw total.

Liquid ingredients are added at the mixers from an enclosed tank farm. Also used for batching feeds are a 20-bin CPM Beta Raven microingredient system and a four-tote bagged ingredient system per mixer.

All feeds are pelleted at Yellville on three CPM Model 9042 pellet mills rated at 45 tph. A pair of Cleaver Brooks 500-hp boilers supply steam for pelleting operations. Pellets are processed further through Bliss counterflow coolers, and poult feeds are prepared in a Bliss crumbler.

Butterball utilizes independent feed trucking firms, loading semis using WL Port-Land Systems weigh lorries in two truck bays. It takes an average of 15 minutes to load a semi, which delivers feed to producers within a 40-mile radius.

Butterball, LLC

  • Ozark, AR
  • Founded: 1954
  • Turkey production: 1.2 billion live lbs./year
  • Associated feed produced: 1.5 million tpy
  • Annual sales: $1.6 billion (2019)
  • Number of employees: 6,700

Key staff involved in design of mill

  • Greg Wall, director, Midwest feed mill operations, Butterball, LLC
  • Lorenz Falls, feed division manager, Goldsboro Milling Company
  • Vernon Felts, Ph.D., senior director of live operations, Butterball, LLC
  • Steve Valesko, vice president of engineering, Butterball, LLC
  • Key Yellville feed mill management staff:
  • Jackie Davis, Huntsville, AR live operations manager
  • Chris Reaves, feed mill manager
  • Eduardo de la Garza, assistant feed mill manager
  • Alexander Burg, feed mill maintenance supervisor
  • Kyle Copeland, feed mill supervisor

Supplier List

  • Air compressor • Atlas Copco
  • Bearing sensors • 4B Components Ltd.
  • Bin level monitors • BinMaster Level Controls
  • Boiler • Cleaver Brooks
  • Bucket elevators • GSI InterSystems
  • Contractor/millwright • WL Port-Land Systems Inc.
  • Control system • Repete Corp.
  • Conveyors • GSI InterSystems
  • Distributors • Hayes & Stolz Ind. Mfg. Co. Inc.
  • Dust collection system • Aircon, AGI Airlanco
  • Elevator buckets • Maxi-Lift, Inc.
  • Engineering (civil/structural) • WL Port-Land Systems Inc.
  • Gates/diverters • Tom-Cin Metals
  • Hammermills • Bliss Industries, LLC
  • Liquid tanks • Synder Industries Inc., Graber Steel & Fabrication LLC
  • Manlift • Schumacher Elevator Co.
  • Mass flow meters • Micro Motion
  • Microingredient systems • CPM Beta Raven
  • Mixers • Scott Equipment Co.
  • Motion sensors • 4B Components Ltd.
  • Pellet coolers • Bliss Industries, LLC
  • Pellet crumbler • Bliss Industries, LLC
  • Pellet mills • CPM
  • Scales • Rice Lake Weighing Systems/WL Port-Land Systems Inc.
  • Screw conveyors • Conveyors Inc.
  • Spouting • LCDM, Premier Components
  • Tote system • CPM Beta Raven
  • Truck scales • B-Tek Scales

Ed Zdrojewski, editor

Reprinted from September/October 2020 GRAIN JOURNAL
